FEATURE
- Compact design and fast installation
- Easy to be integrated at any position of the production line
- Original design, small size and lightweight, equiped with a small table or mounting bracket with the use of production line
- More further environmental protection and energy saving
- Un-contact processing, more environmental protection, lower power, fast laser marked and cost economy
- Easy to use and Excellent compatibility
- Simplicity of operation, easy to use, powerful anti-jamming performance, enough memory, multiply input and output interface, use with automatical anti-counterfeit and anti-disorder system
- Adopt import laser, more safer and faster

Operate Interface
- Configure with laptop

APPLICATIONS
Food, Beverage, Tobacco, Electronic Component, Pharmaceuticals, ceramic wares, Automobile part, Electrical Wire, Cable, Arts and Crafts, Rubber

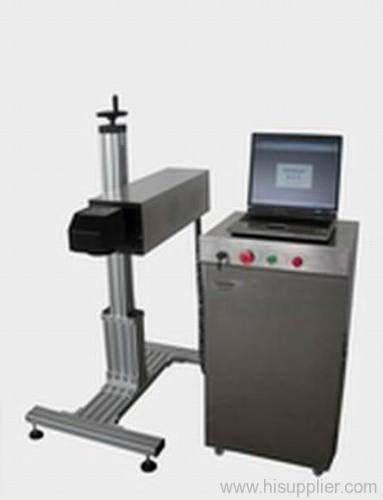

LASER
CO2 Metal RF laser
Power: 30W
High-speed, stable performance, adjustable power, applicable to most of nonmetal material
Carve and cut product very convenience, depth could be adjustable

Model C-30B
Refrigerate Style Air-cooled, Water-cooled
Wave length 10.6mm
Line Width 0.02mm
Depth 0.04mm (up to the material)
Industrial Controller Industrial control computer
Print Content Character, logo, barcode, two-dimension code, image, graphics, DOT mosaic
Operating Range Embeded many kinds of laser marked font, automatical serial number, Can be
Static and dynamic operation, automatic input with time and date change
Information Input Keyboard, USB, serial data communication
Interface Ethernet, USB, RS232
Focus Standard focus 110mm, 70 to 250mm optional
Pipelining Speed 150M per minute
Protection Host optics closed, dust proof
Use Environment: 5-50 centigrade, humidity below 95% Non condensing
Power supply: AC220V 50Hz 1000W
